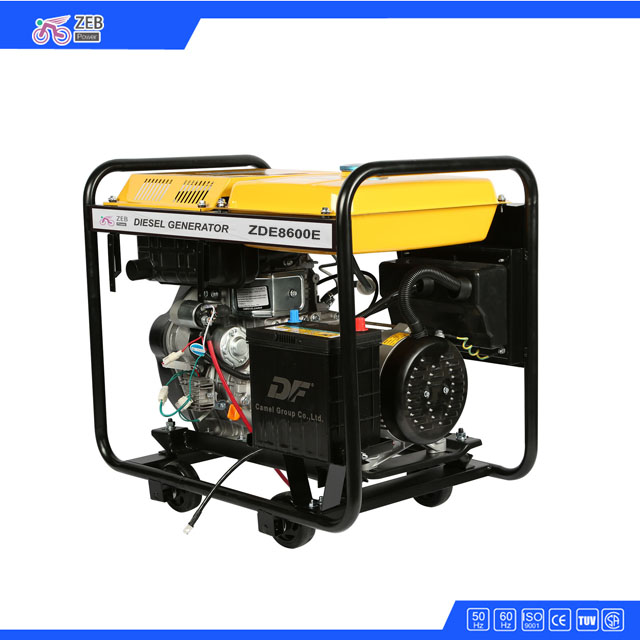

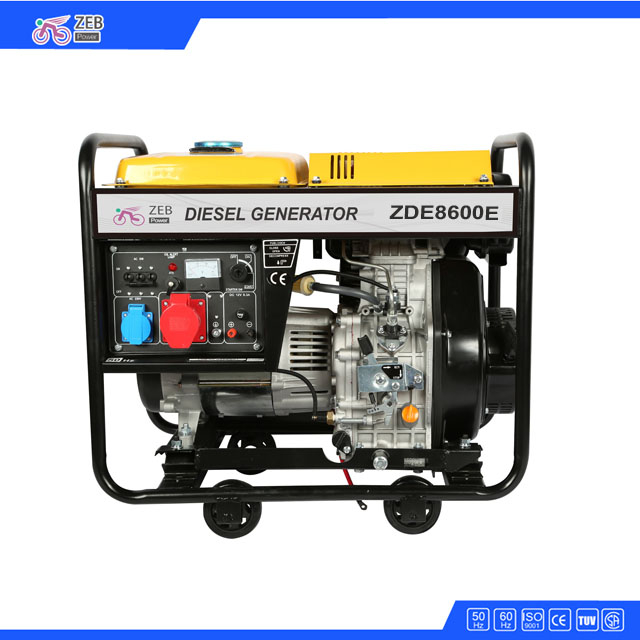

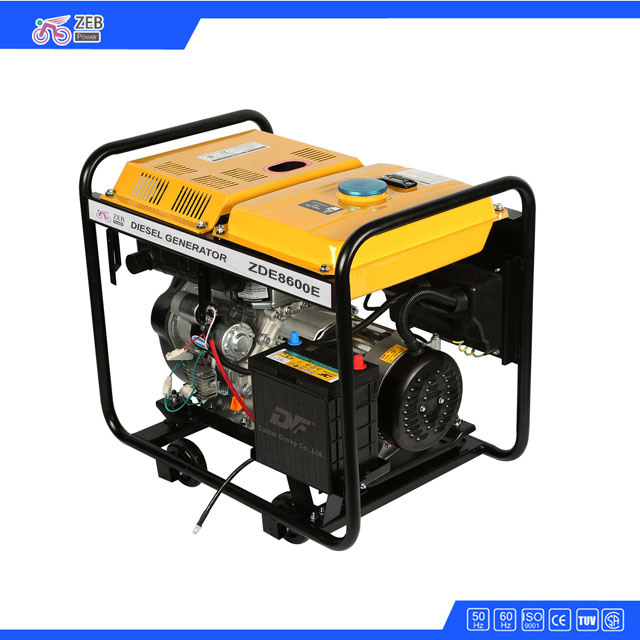

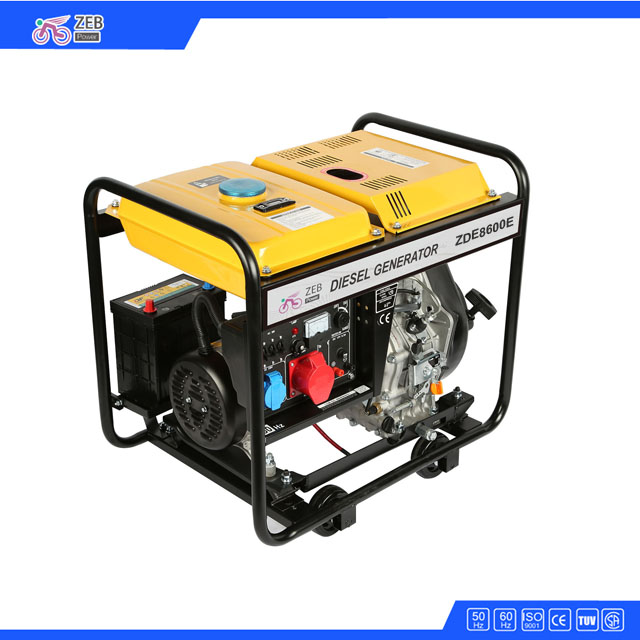

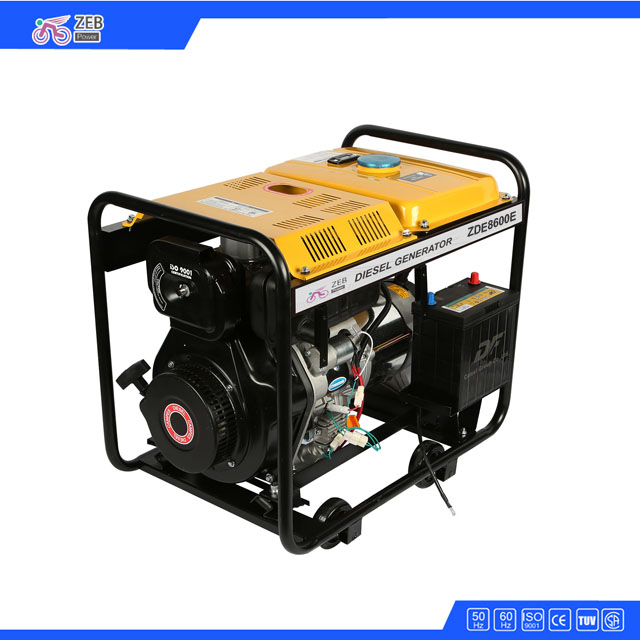

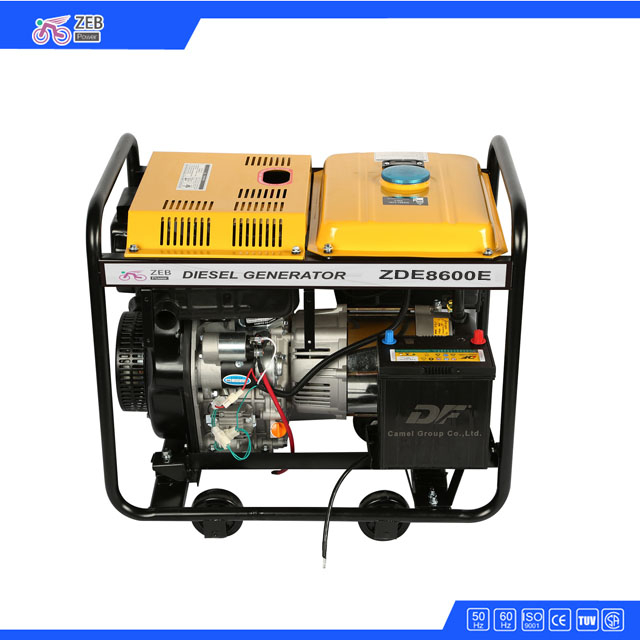

5.5KW Open Type Single Phase Diesel Generators With Electrical Start

ZEB Power Portable Diesel Generator

Open Type

50 Hz & 60 Hz, Single Phase

Electrical Start

Optional Function: ATS, Calculagraph & Remote Control Start.

MOQ: 20 Pcs Per Model.

Safety & Reliable

High Quality Starting Battery With Good Short Circuit Protective Device

Lightweight and Easy to Transport

Compact Design To Make Smaller And Big Solid Wheels To Transport Easily

Both Recoil and Electric Start

One Pull Recoil Starting Generator Is Good Option for Electric Start.

Simplified Control Panel

With Pointer Voltmeter, Digital LCD Trinity Display, Easy To Read Voltage/Frequency/Time.

Strong Generator Frame

Big Tube Frame To Hold Generator Tightly, in which prolong durability and stability when running.

*Verify Code

Related Products

Generator	Model	ZDE8600E
	Frequency (Hz)	50	60
	Output power (KVA)	5.5	6
	Max. Power(KVA)	6	6.5
	Voltage (V)	115/230	120/240
	Current (A)	47.8/23.9	50/25
	Engine speed (r/min)	3000	3600
	Phase	Single
	Power factor(cosφ)	1
	Excitation system	Self-excited constant voltage
	Noise level (7m)	DB (A): 77
	Fuel tank capacity (L)	12.5
	Structure	Open-frame
	Panel	Ordinary
	Outputsocket	Two
	DC12V output	Terminal post
Engine	Engine Model	188FE
	Engine Type	Single-cylinder, vertical, four-stroke, air-cooled, direct injection
	*Borestroke (mm)**	*88 75**
	Displacement (L)	0.456
	Power (KW)	7.5/3000	8.3/3600
	Fuel consumption rate (g. KW/h)	275.1	281.5
	Compression ratio	19
	Lubrication system	Pressure Splashing
	Engine starting system	Electric starter
	Diesel oil model	Summer: 0#, winter: -10#
	Lube oil model	SAE10W-30 (above CD grade)
	Lube oil capacity (L)	1.65
	Battery capacity(V-AH)	12V-36Ah
Dimension	Structure:	Open-frame
	Packing Dimension：mm	*760515710*
	Gross weight：kg	117
	20FT	102
