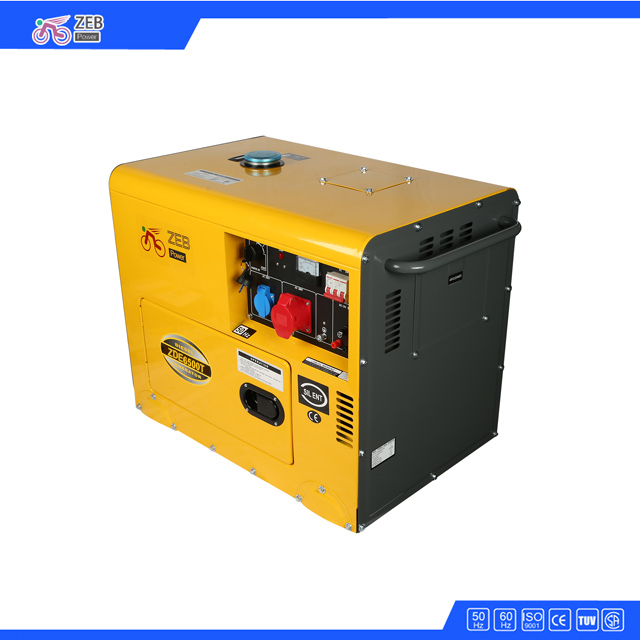

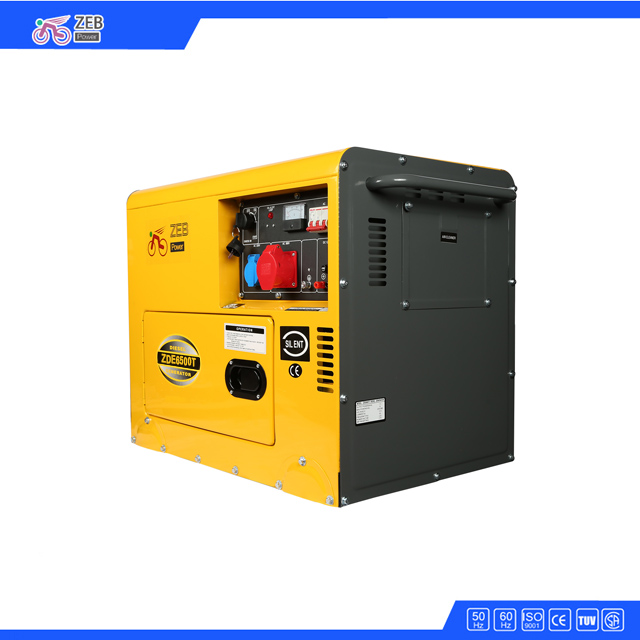

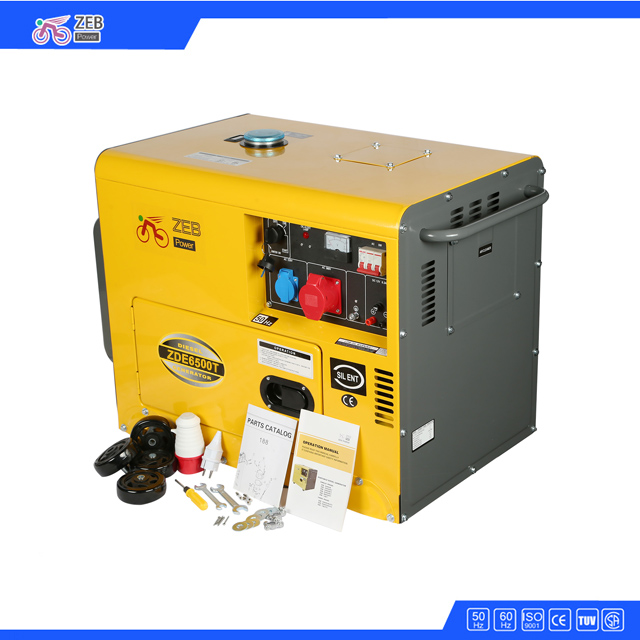

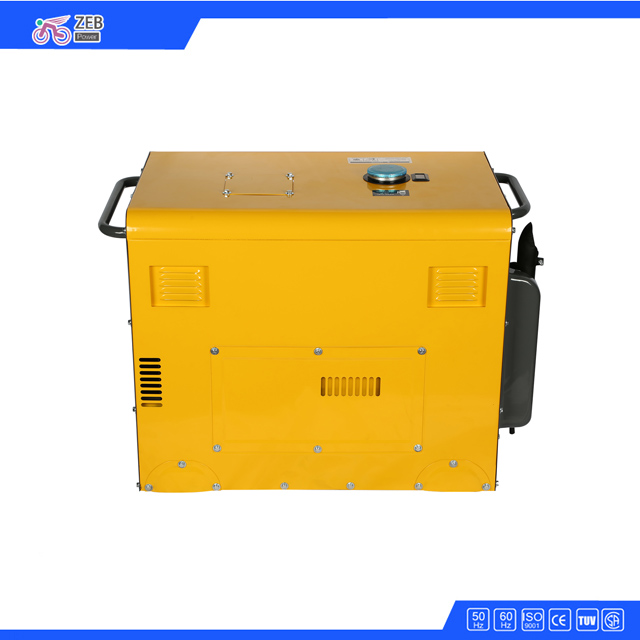

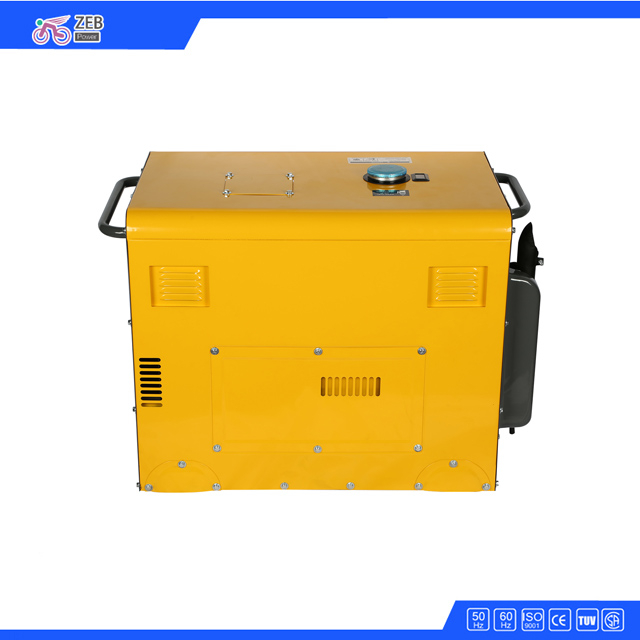

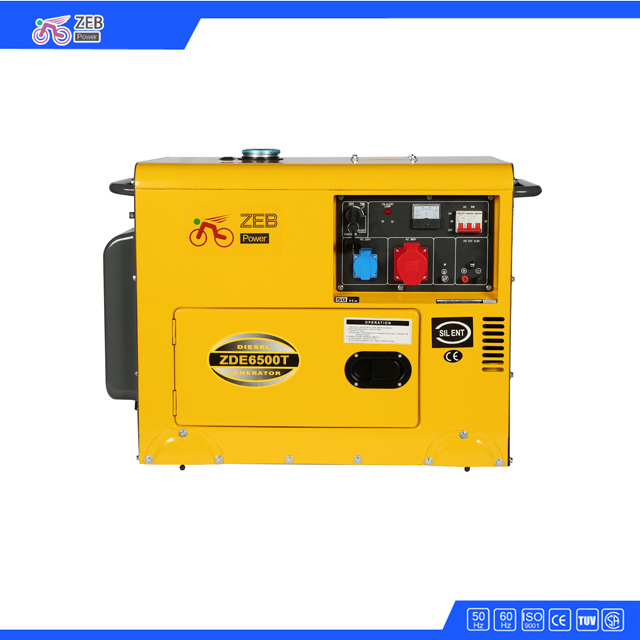

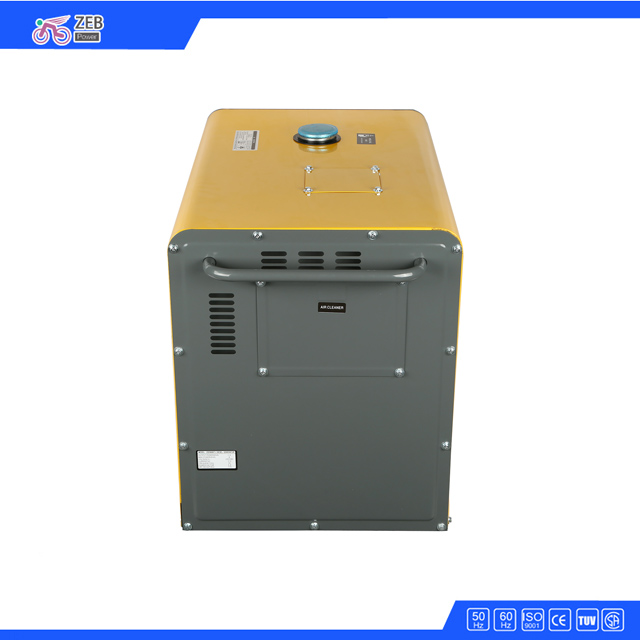

4.5KW Silent Type Single Phase Diesel Generators With Electrical Start

ZEB Power Portable Diesel Generator

Silent Type

50 Hz & 60 Hz, Single Phase

Electrical Start

Optional Function: ATS, Calculagraph & Remote Control Start.

MOQ: 20 Pcs Per Model.

Safety & Reliable

High Quality Starting Battery With Good Short Circuit Protective Device

Intelligent Digital Controller

Digital Display For All Data Like Frequency/Ampere/Voltage/Time.

All Protection Functions and Warnings.

Super Silent

Equipped With High Quality Silencer To Reduce Noise To Bear All Working Conditions.

ATS

Automatic Transfer Switch To Realize Between Generators And Main Power

Lightweight and Easy to Transport

Compact Design To Make Smaller And Big Solid Wheels To Transport Easily

*Verify Code

Related Products

Generator	Model	ZDE6500T
	Frequency：Hz	50	60
	Rated output:Kva	4.5	5
	Max.output:Kva	5	5.5
	Rated.AC voltage:V	115/230	120/240
	Current:A	39.1/19.6	41.7/20.8
	Phase	Single
	DC output:	12V/8.3A
	Power factor：COSФ	COSФ=1
	Alternator type	self－excited，2－pole，single phase alternator
	Starting system	Electric Starter
	Operating noise level（at 7m）：dB(A)	72
	Fuel tank capacity：L	16
Engine	Engine Model	186FA
	Type	Single-cylinder,vertical,4-stroke air-cooled diesel engine
	Bore × Stroke(mm)	86×72
	Fuel	Summer:0# Winter: -10#
	Lubricatiom oil Model:	SAE10W-30(above CD grade）
	Lubricatiom oil volume：L	1.65
	Lubricating System	Pressure Splashing
	Fuel comsumption Rate（g.kw/h)	275.1	281.5
	Displacement：L	0.418
	Power/speed:KW, r/min	5.7/3000	6.3/3600
	Compression Ratio	19
	Combustion system	Direct lnjection
Dimension	Structure:	Soundproof
	Packing Dimension：mm	*970560770*
	Gross weight：kg	170
	20FT	72

Generator	Model	ZDE6500T
	Frequency：Hz	50	60
	Rated output:Kva	4.5	5
	Max.output:Kva	5	5.5
	Rated.AC voltage:V	115/230	120/240
	Current:A	39.1/19.6	41.7/20.8
	Phase	Single
	DC output:	12V/8.3A
	Power factor：COSФ	COSФ=1
	Alternator type	self－excited，2－pole，single phase alternator
	Starting system	Electric Starter
	Operating noise level（at 7m）：dB(A)	72
	Fuel tank capacity：L	16
Engine	Engine Model	186FA
	Type	Single-cylinder,vertical,4-stroke air-cooled diesel engine
	Bore × Stroke(mm)	86×72
	Fuel	Summer:0# Winter: -10#
	Lubricatiom oil Model:	SAE10W-30(above CD grade）
	Lubricatiom oil volume：L	1.65
	Lubricating System	Pressure Splashing
	Fuel comsumption Rate（g.kw/h)	275.1	281.5
	Displacement：L	0.418
	Power/speed:KW, r/min	5.7/3000	6.3/3600
	Compression Ratio	19
	Combustion system	Direct lnjection
Dimension	Structure:	Soundproof
	Packing Dimension：mm	*970560770*
	Gross weight：kg	170
	20FT	72
